meerecompany's CubeEye I.Cube I200D delivers accurate and reliable 3D depth data in real time, even in challenging outdoor environments with strong sunlight.
Powered by the Infineon REAL3™ 3D image sensor, it utilises patented SBI (Suppression of Background Illumination) technology to suppress ambient light interference and maintain stable depth performance.
Supporting a measurement range of up to 7 meters and a wide 90° × 68° Field-of-View (FOV), the I200D is an ideal solution for smart mobility, unmanned drones, outdoor security, and spatial awareness applications.
| Characteristic | Specification |
 |
I.Cube I200D – Sunlight robust, long range ToF camera |
| Sensor | Infineon IRS2976 HVGA 640 x 240 twin-ToF-pixel |
| Resolution | VGA 640 x 480 (640 x 240-interpolated) |
| Frame Rate | 5 / 10 / 15 FPS |
| VCSEL | 940nm, 4W |
| Field of View | 90° (H) x 68° (V) |
| Measurement Range | 0.25m - 7.0m |
| Output Data | Depth / Amplitude / Point Cloud |
| Accuracy | 10mm @ <1m, ±1% >1m |
| Companion Chip | MR1000 ASIC, reduces load on host |
| Data Interface | MIPI CSI-2, USB 3.0 |
| Software | Linux, Windows, Android, ROS1, ROS2 |
| Input Power Voltage | 5V DC |
| Power Consumption | 2.5W (average), 15W (peak) |
| Operating Temperature Range | -5°C - 55°C |
| Ambient Light Conditions | Indoor and outdoor |

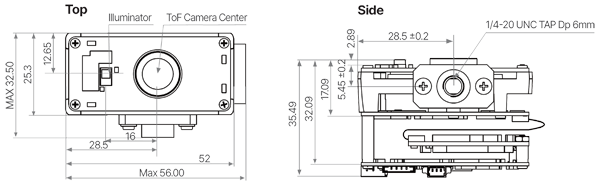

| Dimensions (L x W x H) |
USB: 53 x 25.3 x 35.5 (mm3) |
| Weight | MIPI: 35.2g USB: 41.5g |
| Eye Safety Certification | IEC 60825-1:2014 (3rd Edition) Class1 |
For more information on the CubeEye range of iToF 3D depth cameras please use the links or Contact Us to discuss your application.
